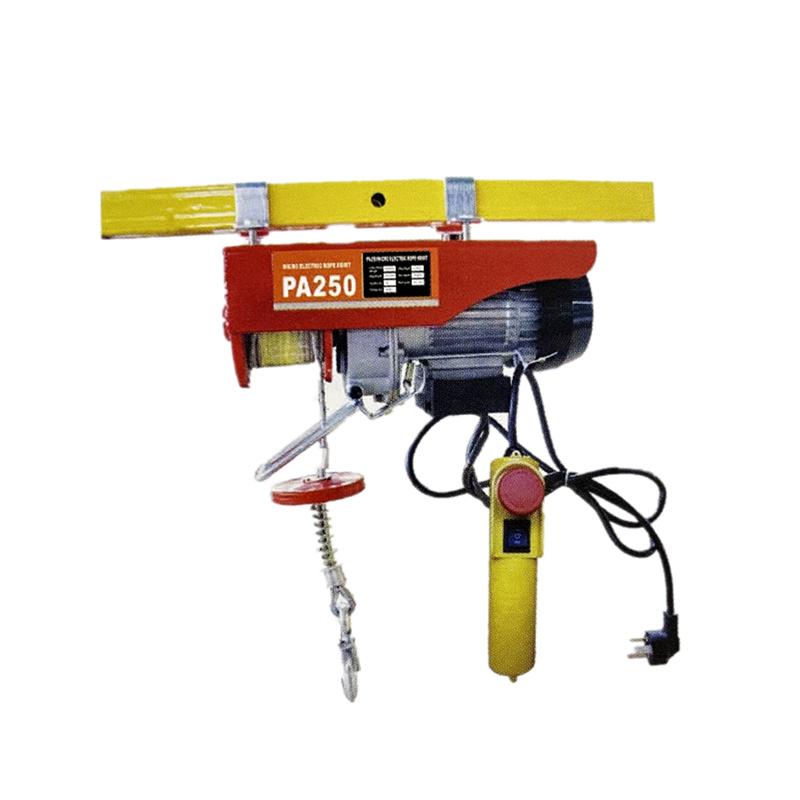

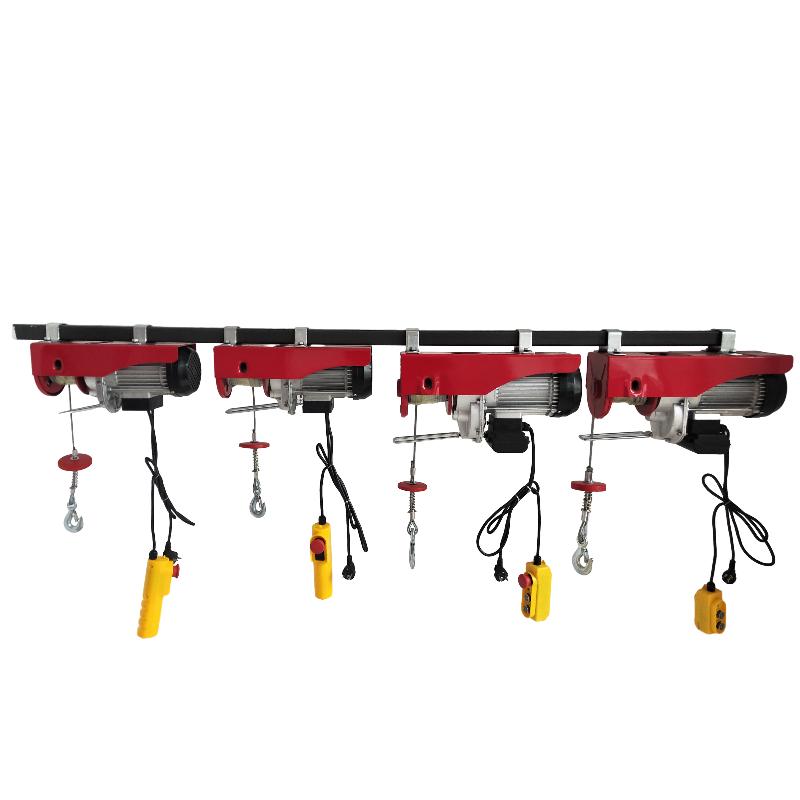

PA Mini Electric Hoist

Mini electric hoist, also called civil electric hoist, can lift goods below 1000 kg. It is especially suitable for lifting goods vertically from downstairs to upstairs in buildings. Mini electric hoists are often used together with column-type and wall-type jib cranes. It has the characteristics of simple structure, light weight and small size and uses single-phase electricity as the power source, which is easy to install. Mini electric hoist uses 220V civilian power supply, especially suitable for daily civilian use, industrial production lines, freight logistics and other occasions. During the 21-year journey of manufacturing lifting equipment, Juli Hoisting has formed the concept of high efficiency, high quality, and professionalism. We firmly believe that quality is the core factor to win the market, and are committed to providing customers with good service.

Send email to us Download as PDF

Product Detail

Product Tags

product description

The lifting speed of the mini electric hoist can reach 10 m/min, and the standard length of the wire rope is 12 meters (extensions can also be customized). The motor heat sink of the mini electric hoist adopts a cast iron structure, which improves the service life. In terms of hooks, an advanced double hook setting is specially designed, which greatly increases the lifting capacity of the mini electric hoist.

Mini electric hoists have reached international standards in terms of production and design, ensuring safety in use. Our products have passed CE certification and RoHS certification. Welcome to send an email for consultation. We will send out samples for free.

Read More About pa micro electric rope hoist

main parameter

Model		PA200	PA300	PA400	PA500	PA600	PA800	PA1000	PA1200
Rated lifting weight (kg)	single-hook	100	150	200	250	300	400	500	600
Rated lifting weight (kg)	double-hook	200	300	400	500	600	800	1000	1200
Wire rope length(m)		12	12	12	12	12	12	12	12
Motor power(W)		510	540	980	1020	1200	1300	1600	1800
Lifting speed (m/min)	single-hook	10	10	10	10	10	10	8	8
Lifting speed (m/min)	double-hook	5	5	5	5	5	5	4	4
Lifting height (m)	single-hook	12	12	12	12	12	12	12	12
Lifting height (m)	double-hook	6	6	6	6	6	6	6	6
Wire rope diameter(mm)		4	4	4	4	4	5	6	8
QTY/CTN(PCS)		2	2	2	2	2	2	1	1
Remark: All parameters can be customized.

product details

Pure cooper wire motor

The motor coil is made of pure copper wire, which generates low heat and is not easy to burn the machine.

Silicon steel extended rotor

The motor uses an silicon steel extended rotor, significantly improving work efficiency.

Thick galvanized steel wire rope

The strong steel wire rope is spun with a special close-winding method, which has the advantages of anti-rotation and anti-breakage, and is safe and secure.

Automatic anti-collision limit device

When the limit baffle hits the limiter, the elevator will automatically stop working to avoid safety accidents caused by carelessness during work.

Multifunctional hook

There are two using method of the mini electric hoist: single-rope using and double-rope using. When single-rope using, the speed is faster. When double-rope using, the loading capacity is larger, providing multiple choices to easily cope with various conditions.

Waterproof handle

The plug and handle of the mini electric hoist are both waterproof, safe for use indoors and outdoors.

Package Measurements

Specification		N.W. (KG)	QTY/CTN (PCS)	Total G.W. (KG)	Package Measurements
Model	Wire rope length(m)	N.W. (KG)	QTY/CTN (PCS)	Total G.W. (KG)	Length(cm)	Width(cm)	Height(cm)
PA200	12	11	2	22.5	38	30	24.5
PA300	12	11.5	2	23.5	38	30	24.5
PA400	12	16	2	33	45	34	27
PA500	12	16.25	2	33.5	45	34	27
PA600	12	17	2	35	45	34	27
PA800	12	18.5	2	38	45	34	27
PA1000	12	28.5	1	30	54	24.5	31.5
PA1200	12	31	1	32	54	24.5	31.5
